Clerk.io offers three distinct search solutions that can be used together or separately:

An Instant Search Dropdown.
A Search Page with Faceted Search filtering.
An Omnisearch overlay that combines both.

This article explains how to get started when using a Clerk.js setup in VTEX.

Instant Search #

Instant Search provides real-time search results as customers type, displayed in a dropdown below the search input field.

Create Design #

You can either use the Design Editor to configure it visually, or use code designs.

Design Editor #

Go to Search > Designs and click New Design.
Choose Other designs > Instant Search.
From the list of design templates, choose which one you want to start with.
Give it a name and click Create design.
Make any changes you want to the design.

You can use the Setup guide entitled SEARCH under the Getting Started option, to quickly create Designs and Content that have the same color scheme and style as your webshop.

Click Publish when you are happy with the styling.

You can easily change your designs and content later, under Designs and Elements in the left menu.

Code Design #

Go to Search > Designs and click New Design.
Choose Other designs > Blank > With code.
Give it a name and click Save.
Create a code design from scratch using Liquid code.

If you want a starting design, check the Instant Search template further down.

Create Element #

This contains all the settings used to show the Instant Search dropdown, and make it embeddable in your website.

Go to Search > Elements.
Click New Element.
Name it “Live Search”.
In Element type, select Live-search from the dropdown.
In Design select the design you created from the dropdown.
Click Save at the top of the screen.

Add to Website #

From the Element settings, open the Insert into website tab.
Here you have two options:
- Using injection allows you to insert the code by using a CSS selector.
- Using embedded code allows you to insert the code into your website manually.
Pick the option that is easiest for you to use.
The App creates a component search input field for use in your header: clerkio_searchinput. By default this input field takes you to the dedicated page route created by the app.

Search Page #

The Search Page provides a full-page search experience with advanced filtering options. This is used to show every single match for a customer’s search query.

Create Design #

You can either use the Design Editor to configure it visually, or use code designs.

Design Editor #

Go to Search > Designs and click New Design.
Choose Other designs > Search Page.
From the list of design templates, choose which one you want to start with.
Give it a name and click Create design.
Make any changes you want to the design.

You can use the Setup guide entitled SEARCH under the Getting Started option, to quickly create Designs and Content that have the same color scheme and style as your webshop.

Click Publish when you are happy with the styling.

You can easily change your designs and content later, under Designs and Elements in the left menu.

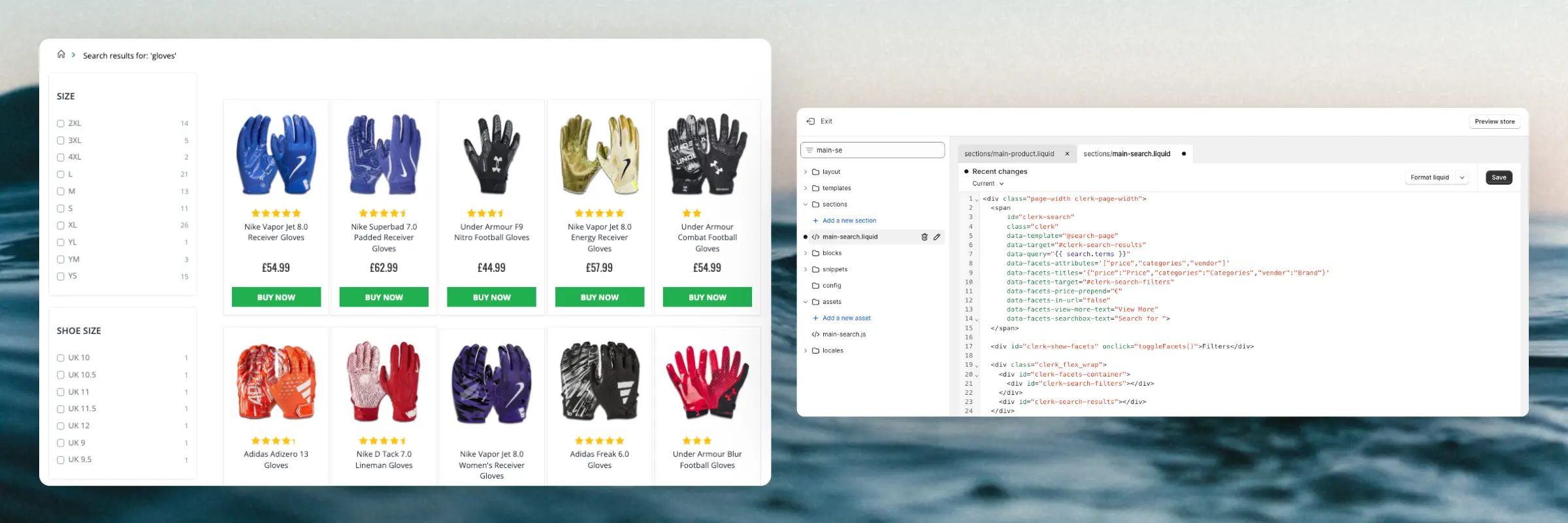

Code Design #

Go to Search > Designs and click New Design.
Choose Other designs > Blank > With code.
Give it a name and click Save.
Create a code design from scratch using Liquid code.

If you want a starting design, check the Search Page template further down.

Create Element #

This contains all the settings used to show the Search Page, and make it embeddable into your existing search page.

Go to Search > Elements.
Click New Element.
Name it “Search Page”.
In Element type, select Search page from the dropdown.
In Design select the design you created from the dropdown.
Click Save at the top of the screen.

Add to Website #

From the Element settings, open the Insert into website tab.
Here you have two options:
- Using injection allows you to insert the code by using a CSS selector.
- Using embedded code allows you to insert the code into your website manually.
Pick the option that is easiest for you to use.
On your store theme, add clerkiopartnerdk.integration-vtex 1.x as a theme peerDependency in the manifest.json file:

"peerDependencies": {
    "clerkiopartnerdk.integration-vtex": "1.x"
}

Add the clerkio_searchpage block in the dedicated landing search page.

{
  "responsive-layout.desktop#searchpage": {
    "children": ["clerkio_searchpage"]
  }
}

The App will also create a dedicated search page route on /clerk-search?searchTerm=__QUERY__. This route already has the clerkio_searchpage block added in the body.

After enabling the features, you will be able to see Clerk.io’s SEARCH function on your webshop.

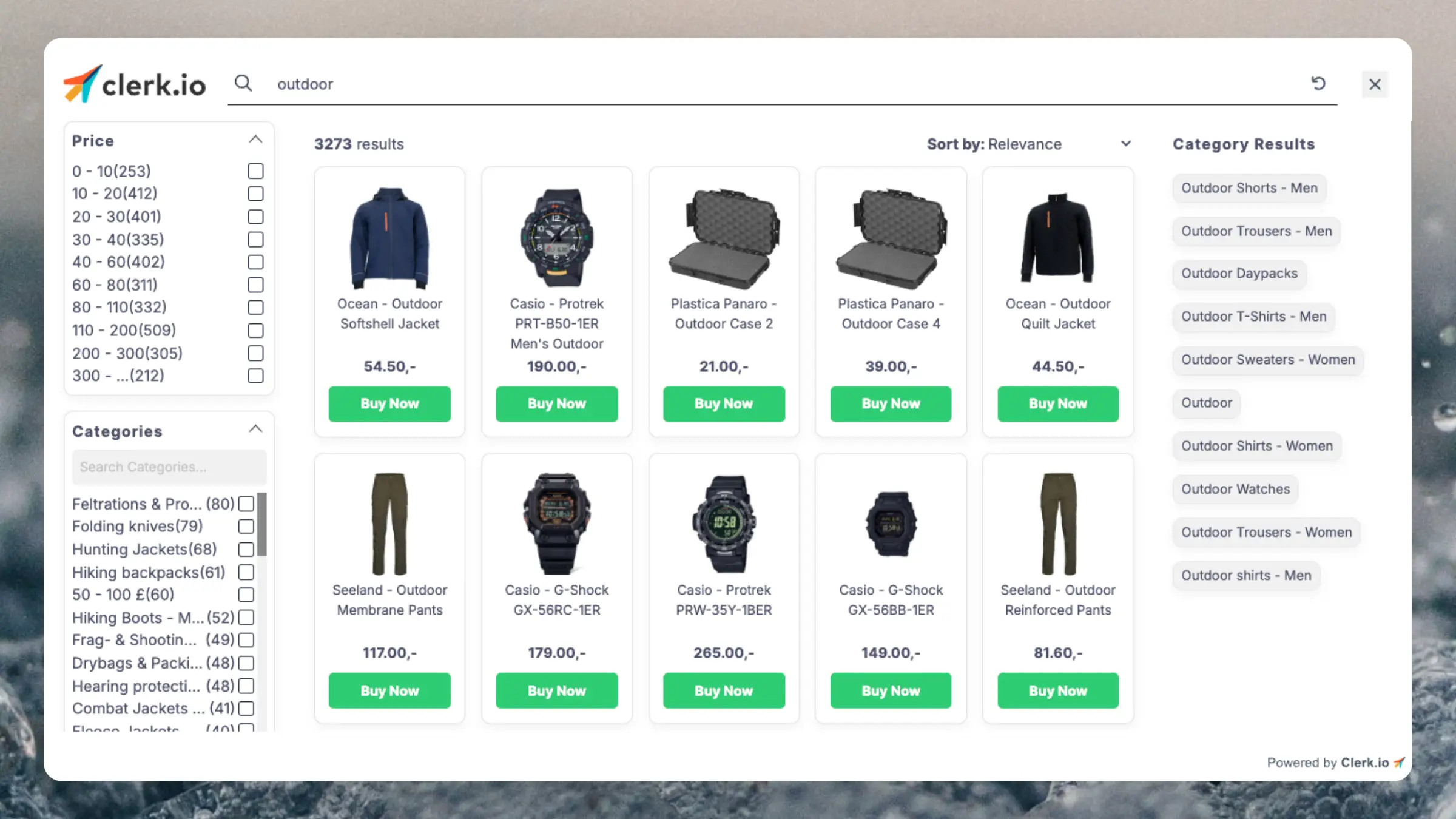

Omnisearch #

The Omnisearch combines the Instant Search and Search Page into a single overlay that is displayed when the user clicks inside the search input field.

For Single Page Applications (SPAs), an additional feature must be enabled to integrate Omnisearch. The feature, SPA Auto Detect Changes, can be activated by navigating to my.clerk.io > Settings > Features.

Create Design #

Omnisearch only works with code designs, as it has a more complex layout that can be modified in any way you want.

Go to Search > Designs and click New Design.
Choose Omni-search.
From the list of design templates, choose which one you want to start with.
Give it a name and click Save.
Make any adjustments you want to the design. The Omnisearch guide has more information on how to do this.

Create Element #

This contains all the settings used to show the Omnisearch, and make it embeddable in your website.

Go to Search > Elements.
Click New Element.
Name it “Omni-Search”.
Add a tracking label - this should also just be “Omni-Search”.
In Element type, select Omni-search from the dropdown.
In Design select the design you created from the dropdown.
Click Save at the top of the screen.

Add to Website #

From the Element settings, open the Insert into website tab.
Here you have two options:
- Using injection allows you to insert the code by using a CSS selector.
- Using embedded code allows you to insert the code into your website manually.
Pick the option that is easiest for you to use.
If you use the embedded code option, replace INSERT_CSS_SELECTOR[...] with a unique class or ID for your search input field. Omnisearch will be shown when the input field matching the selector is clicked.

Starting Templates #

If you want to use code designs, these templates can get you started. They contain the basic UI elements that make up the Instant Search and Search Page, which you can then modify to your needs.

Instant Search Code #

This contains the HTML and CSS parts for displaying an Instant Search dropdown. Add these to a code design in my.clerk.io.

HTML #

<div class="clerk-instant-search">
    {% if hits.length == 0 %}
        <div class="clerk-instant-search-no-results">
            Nothing matched: <b>{{ query }}</b>... try a simpler search!
        </div>
    {% endif %}

    {% if content.query != response.query %}
        <div class="clerk-instant-search-alternate-query">
            <i class="fas fa-search clerk-icon" aria-hidden="true"></i> Showing results for: <b>{{ query }}</b>
        </div>
    {% endif %}

    <div class="clerk-instant-search-grid">
        {% if products.length > 0 %}
            <div class="clerk-instant-search-col clerk-col-1">
                <div class="clerk-instant-search-products">
                    <div class="clerk-instant-search-title">Products</div>
                    {% for product in products %}
                        <a href="{{ product.url }}">
                            <div class="clerk-instant-search-product clerk-instant-search-key-selectable">
                                <div class="clerk-instant-search-product-image" style="background-image: url('{{ product.image }}');"></div>

                                <div>
                                    <div class="clerk-instant-search-product-name">{{ product.name | highlight query }}</div>

                                    {% if product.price < product.list_price %}
                                        <div class="clerk-instant-search-product-list-price">{{ product.list_price | money }}</div>
                                    {% endif %}
                                    <div class="clerk-instant-search-product-price">{{ product.price | money }}</div>
                                </div>

                                <div>
                                    <div class="clerk-instant-search-product-button">Buy Now</div>
                                </div>
                            </div>
                        </a>
                    {% endfor %}

                    {% if hits > products.length %}
                        <div class="clerk-desktop-button clerk-instant-search-more-results clerk-instant-search-key-selectable">
                            <a class="clerk-view-more-results-button" href="/search?q={{ query }}">
                                <u>See <b>{{ hits }}</b> more results for "<i>{{ query }}</i>"</u>
                            </a>
                        </div>
                    {% endif %}
                </div>
            </div>
        {% endif %}

        {% if (suggestions.length + categories.length + pages.length) > 0 %}
            <div class="clerk-instant-search-col clerk-col-2">
                {% if suggestions.length > 1 %}
                    <div class="clerk-instant-search-suggestions">
                        <div class="clerk-instant-search-title">Search Suggestions</div>
                        {% for suggestion in suggestions %}
                            {% if suggestion != query %}
                                <div class="clerk-instant-search-suggestion clerk-instant-search-key-selectable">
                                    <a href="/search?q={{ suggestion highlight query 'bold' true }}">
                                    <i class="fas fa-search clerk-icon" aria-hidden="true"></i>{{ suggestion }}
                                    </a>
                                </div>
                            {% endif %}
                        {% endfor %}
                    </div>
                {% endif %}

                {% if categories.length > 0 %}
                    <div class="clerk-instant-search-categories">
                        <div class="clerk-instant-search-title">Categories</div>
                        {% for category in categories %}
                            <div class="clerk-instant-search-category clerk-instant-search-key-selectable">
                                <a href="{{ category.url }}">
                                    {{ category.name | highlight query }}
                                </a>
                            </div>
                        {% endfor %}
                    </div>
                {% endif %}

                {% if pages.length > 0 %}
                    <div class="clerk-instant-search-pages">
                        <div class="clerk-instant-search-title">Related Content</div>
                        {% for page in pages %}
                            <div class="clerk-instant-search-category clerk-instant-search-key-selectable">
                                <a href="{{ page.url }}">
                                    <div class="name">{{ page.title | highlight query 'bold' true }}</div>
                                </a>
                            </div>
                        {% endfor %}
                    </div>
                {% endif %}
            </div>
        {% endif %}
         {% if hits > products.length %}
            <div class="clerk-mobile-button clerk-instant-search-more-results clerk-instant-search-key-selectable">
                <a href="/search?q={{ query }}">
                    See <b>{{ hits }}</b> more results for "<i>{{ query }}</i>"
                </a>
            </div>
        {% endif %}
    </div>
</div>

CSS #

.clerk-instant-search {
    padding: 20px;
}

.clerk-instant-search-container a {
    color: black !important;
    text-decoration: none !important;
}

.clerk-instant-search-container a:hover {
    color: #b6c254; !important;
}

.clerk-instant-search {
    overflow: hidden;

    width: 100%;
    min-width: 650px;
    max-width: 1000px;

    margin: .2em auto;

    background-color: white;

    border: 1px solid #eee;
    border-top: 0px;

    border-radius: 5px 5px 10px 10px;

    box-shadow: 0 1em 2em 1em rgba(0,0,0,.2);
}

.clerk-instant-search-no-results {
    padding: 1em;

    font-style: italic;

    text-align: center;
}

.clerk-instant-search-alternate-query {
    margin: 0px 0px 5px 0px;
}

.clerk-instant-search-more-results {
    padding: 1em;

    font-size: 1.2em;

    text-align: center;
}

.clerk-instant-search-title {
    color: #b6c254;
    margin: 20px 0px 5px 0px;
    padding: 0px 0px 10px 0px;
    text-transform: uppercase;
    font-size: 1em;
    border-bottom: 1px solid #000000;
}


/* Products */
.clerk-instant-search-products {
    padding-right: 2em;
}

.clerk-instant-search-product {
    display: flex;

    padding: .2em;

    color: gray;
}

.clerk-instant-search-product:hover {
    background-color: rgba(46, 204, 113, .1);
}

.clerk-instant-search-product:hover .clerk-instant-search-product-button {
    transform: scale(1.05);
}

.clerk-instant-search-product > * {
    flex: 1 1 auto;
}
.clerk-instant-search-product > *:first-child, .clerk-instant-search-product > *:last-child {
    flex: 0 0 auto;
}

.clerk-instant-search-product-image {
    display: inline-block;

    width: 3em;
    height: 3em;

    margin-right: 1em;

    background-position: center center;
    background-repeat: no-repeat;
    background-size: contain;
}

.clerk-instant-search-product-name {
    overflow: hidden;

    height: 1.2em;

    margin-bottom: .2em;
}

.clerk-instant-search-product-list-price {
    display: inline-block;

    margin-right: .5em;

    opacity: .8;

    font-weight: normal;
    text-decoration: line-through;
    color: gray;
}

.clerk-instant-search-product-price {
    display: inline-block;

    font-weight: bold;
}

.clerk-instant-search-product-button {
    display: block;

    margin: .2em auto;
    padding: .8em 2em;

    border: none;
    border-radius: .5em;

    background-color: #b6c254;
    color: white;

    text-transform: uppercase;
    text-align: center;

    white-space: nowrap;

    font-weight: bold;
    font-size: .8em;

    cursor: pointer;
}

/* Suggestions */

.clerk-icon {
    color: lightgray;
    margin-right: .5em;
}

.clerk-instant-search-suggestions {
    margin-bottom: 1em;
}

.clerk-instant-search-suggestion {
    padding: .1em;
}



/* Categories */
.clerk-instant-search-categories {
    margin-bottom: 1em;
}

.clerk-instant-search-category {
    padding: 5px;
    margin: 5px;
    width: auto;
    display: inline-block;
    border: 1px solid black;
    border-radius: 2px;
}


/* Pages */
.clerk-instant-search-pages {
    margin-bottom: 1em;
}

.clerk-instant-search-page {
    padding: .1em;
}

@media screen and (min-width: 1200px) {
    .clerk-instant-search-container {
        width: 50%;
    }
    .clerk-instant-search-grid {
        display: flex;
    }

    .clerk-col-1 {
        flex: 2;
    }

    .clerk-col-2 {
        flex: 1;
    }

    .clerk-mobile-button {
        display: none;
    }
}

@media screen and (min-width: 768px) and (max-width: 1200px){
    .clerk-instant-search-container {
        right: 0px !important;
        left: 0px !important;
    }
    .clerk-mobile-button {
        display: none;
    }
}

@media screen and (max-width: 767px) {
    .clerk-instant-search-container {
        right: 0px !important;
    }
    .clerk-desktop-button {
        display: none;
    }
}

@media screen and (min-width: 376px) and (max-width: 800px) {
    .clerk-instant-search {
            min-width: 0px !important;
    }
}

@media screen and (max-width: 375px) {
    .clerk-instant-search {
        min-width: 200px !important;
    }
    .clerk-instant-search-col {
        margin: 0px 0px 20px 0px;
    }
    .clerk-instant-search-product-name {
        height: 3em !important;
    }
}

Search Page Code #

This contains the HTML and CSS parts for displaying a Search Page. Add these to a code design in my.clerk.io.

HTML #

<div class="clerk-search-result">
    <div class="clerk-search-result-headline">{{ headline }}</div>
    <div class="clerk-grid">
        {% for product in products %}
            <div class="clerk-grid-item">
                <div class="clerk-grid-product">
                    <a href="{{ product.url }}">
                        {% if product.price < product.list_price %}
                            <div class="clerk-grid-badge">On Sale</div>
                        {% endif %}
                        <div class="clerk-grid-image" style="background-image: url('{{ product.image }}');"></div>
                        <div class="clerk-grid-brand">{{ product.brand }}</div>
                        <div class="clerk-grid-name">{{ product.name }}</div>

                        <div class="clerk-grid-pricing">
                            {% if product.price < product.retail_price %}
                                <div class="clerk-grid-list-price">£{{ product.retail_price | money }}</div>
                            {% endif %}

                            <div class="clerk-grid-price">£{{ product.price | money }}</div>
                        </div>
                    </a>
                    {% if product.stock == 1 %}
                        <a class="clerk-not-in-stock" href="{{ product.url }}" data-event-type="product-click">
                            <div class="clerk-grid-button-not-in-stock">Out of Stock</div>
                        </a>
                    {% else %}
                        <a class="clerk-add-to-cart" href="/cart.php?action=add&amp;product_id={{ product.id }}" data-event-type="product-click">
                            <div class="clerk-grid-button">Add to Cart</div>
                        </a>
                    {% endif %}
                </div>
            </div>
        {% endfor %}
    </div>

    {% if count > products.length %}
        <div class="clerk-load-more-button" onclick="Clerk('content', '#{{ content.id }}', 'more', 40);">Show More Results</div>
    {% endif %}
</div>

CSS #

#clerk-search-results {
    margin: 0px;
}

.clerk-search-result {
    margin: 1em 0;
}

.clerk-search-result-headline {
    font-weight: bold;
    font-size: 2em;

    text-align: center;
}

.clerk-grid {
    display: flex;
    flex-flow: row wrap;
}

.clerk-grid-item {
    margin: auto;
}

.clerk-grid-product {
    position: relative;
    overflow: hidden;

    margin: 1em;
    padding: 1em;

    background-color: white;

    border: 1px solid #eee;
    border-radius: 1em;

    box-shadow: 0 .1em .2em 0 rgba(0,0,0,.08);

    text-align: center;
}

.clerk-grid-badge {
    position: absolute;
    top: 5px;
    right: -35px;

    display: inline-block;

    width: 120px;

    margin: 10px auto;
    padding: 5px 0;

    border-radius: 3px;

    background-color: #fbc531;

    font-size: 10px;
    color: white;

    text-align: center;
    letter-spacing: 1px;

    transform: rotate(45deg);
}

.clerk-grid-tags {
    position: absolute;
    top: .8em;
    left: .8em;
}

.clerk-grid-tag {
    display: inline-block;

    padding: .2em .8em;

    border-radius: .3em;

    background-color: gray;

    font-size: 10px;
    color: white;

    letter-spacing: 1px;
}

.clerk-grid-image {
    width: 100%;
    height: 8em;

    margin-bottom: 1em;

    background-position: center center;
    background-repeat: no-repeat;
    background-size: contain;
}

.clerk-grid-brand {
    font-size: 0.9em;
    color: #757575;;
}

.clerk-grid-name {
    height: 3em;
    overflow: hidden;
    color: #4a3b40;
    font-weight:bold;
    font-size: 15px;
    margin-bottom: 1em;
}

.clerk-grid-pricing {
    display: flex;

    margin-bottom: 1em;
}

.clerk-grid-price {
    flex: 1;
    color: #757575;
    font-weight: bold;
}

.clerk-grid-list-price {
    flex: 1;

    opacity: .8;

    font-weight: normal;
    text-decoration: line-through;
    color: gray;
}

.clerk-add-to-cart, .clerk-add-to-cart:hover {
    color: white;
}

.clerk-not-in-stock, .clerk-not-in-stock:hover {
    color: #4a3b40;
}

.clerk-grid-button-not-in-stock {
    display: block;

    margin: 0 auto;
    padding: .6em 2em;

    border: none;
    border-radius: .5em;

    background-color: white;
    color: #4a3b40;

    text-transform: uppercase;
    text-align: center;

    white-space: nowrap;

    font-weight: bold;

    cursor: pointer;
}

.clerk-grid-button {
    display: block;

    margin: 0 auto;
    padding: .6em 2em;

    border: none;
    border-radius: .5em;

    background-color: #b6c254;
    color: white;

    text-transform: uppercase;
    text-align: center;

    white-space: nowrap;

    font-weight: bold;

    cursor: pointer;
}


.clerk-load-more-button {
    display: block;

    width: 20em;

    margin: 1em auto;
    padding: .6em 2em;

    border: none;
    border-radius: .5em;

    background-color: #b6c254;
    color: white;

    text-transform: uppercase;
    text-align: center;

    white-space: nowrap;

    font-weight: bold;
    font-size: 1.2em;

    cursor: pointer;
}

@media screen and (min-width: 1025px) {
    .clerk-grid-item {
        flex: 0 0 25%;
        margin: auto;
    }
}

@media screen and (min-width: 500px) and (max-width: 1024px) {
    .clerk-grid-item {
        flex: 0 0 33%;
        margin: auto;
    }
}

@media screen and (max-width: 499px) {
    .clerk-grid-item {
        flex: 0 0 100%;
        margin: auto;
    }
}
